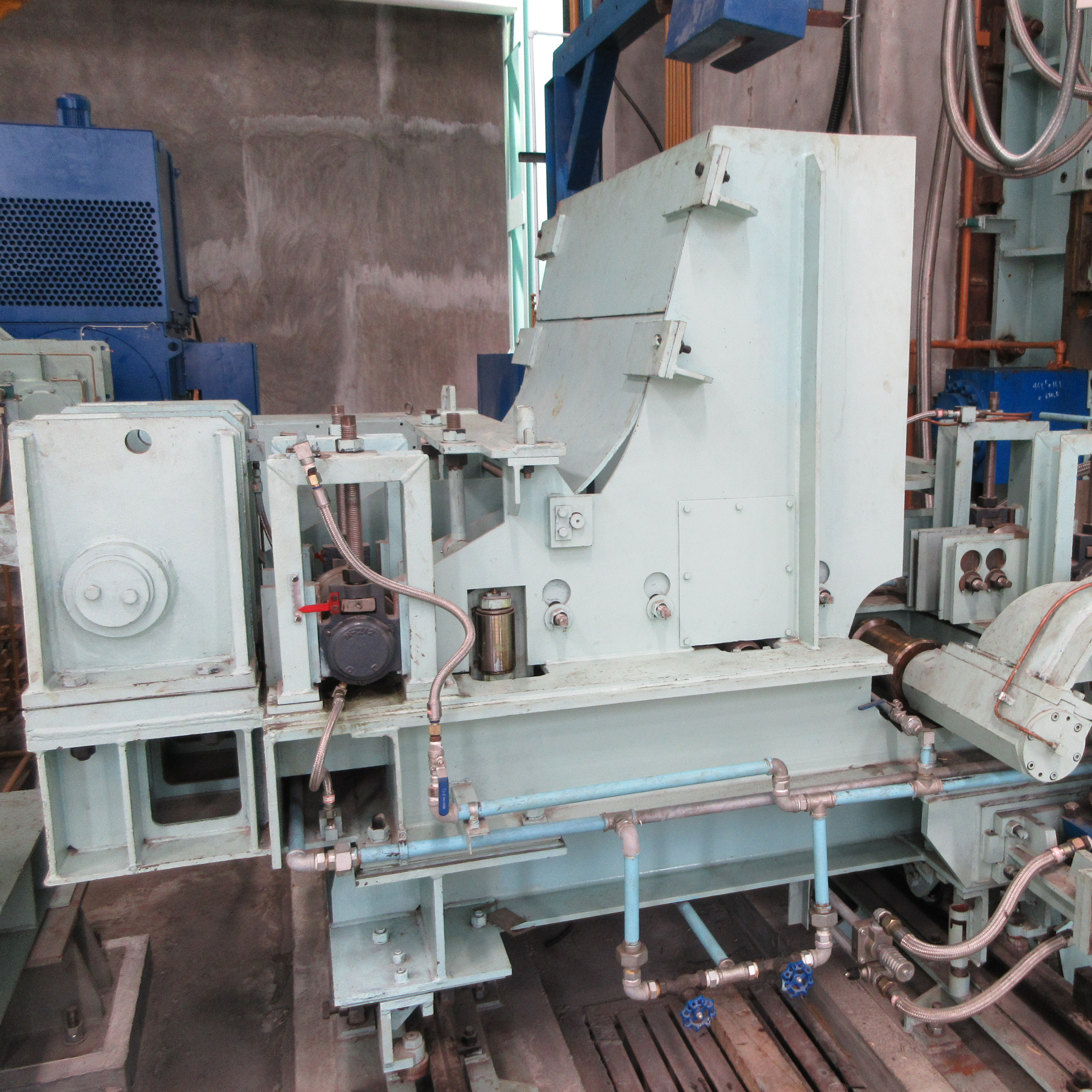

Vertical Looper is used to realize no tension rolling between rolling mills.
Vertical Looper consists of a water-cooled guide roller and a bushing roller sprayed with tungsten carbide on the surface, a cylinder driving the bushing roller, and a welding frame body.
Technical specifications:
Loop-rising roll and guide roller body length: Φ160X130mm
Guide roller: 2 PCS
Loop-rising roll :1 set
Cylinder model: Φ160X120
Cylinder working pressure: 0.4-0.6Mpa
Lifting height: 0 ~ 500mm
Looper lifting time: ≤0.5s
lowering time: ≤0.3s
Elevation Angle of looper: 10° ~ 48°
