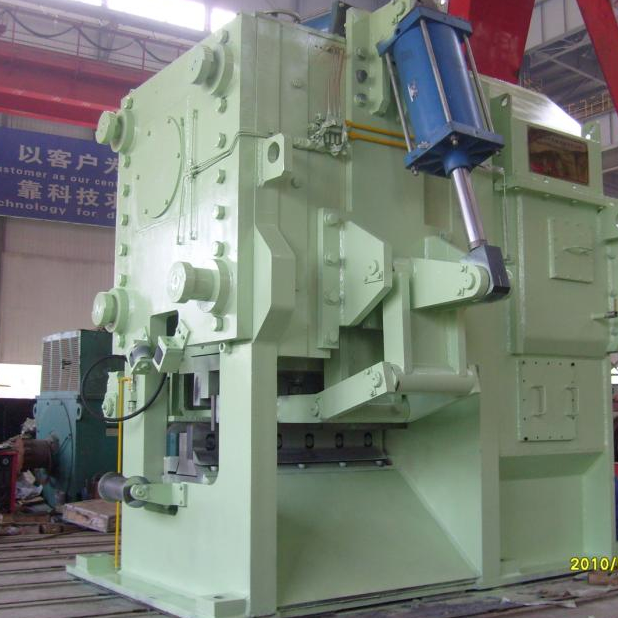

Cold Shear in rolling mill is divided into gantry type cold shear and cantilever type cold shear.
Gantry type cold shear machine has 650 tons, 850 tons, 1000 tons and 1300 tons cold shear machine
Cantilever type cold shear machine has 160 tons and 350 tons cold shear machine.
According to user’s requirements we can design and manufacture non-standard Cold Shear in rolling mill.
·Cold Shear in rolling mill is equipped with American imported pneumatic braking, clutch device, to ensure that the shearing process is fast, accurate, stable and reliable.
·Cold Shear in rolling mill is equipped with a quick blade replacement device, the locking device of the knife block is a disc spring locking hydraulic opening, and the movement of the knife block is driven by a hydraulic cylinder.
·The steel press device is installed on the feed side of the cold shear body, and the press roll extends into the inside of the shear machine and presses the material head closer to the cutting edge, so as to ensure the cutting edge neatly and the safety of operation.
·The transmission part adopts high precision gear drive, with smooth transmission and low noise;
·The frame body is of gantry type, with stable performance and small vibration when shearing.
·With grease oil, thin oil lubrication system, hydraulic valve table;
·With mechatronics configuration.
Technical parameter:
1, shear force: 160KN-13000KN (can be designed and selected according to users)
2, cutting edge width: 500MM-2000MM (can be designed and selected according to users)
3, opening degree: 160MM-210MM (can be designed and selected according to users)
4, cutting times: 10 times/min -15 times/min
Technical parameters of 8500KN cold shear machine
1. Maximum shear force: 8500KN
2. Cutting edge width: 1200mm~1400mm(can be designed according to users)
3. Opening degree: 140mm-160mm(can be designed according to users)
4. Actual cutting frequency: 15 times/min
5. Cutting edge clearance: 0.2 ~ 0.4mm.
Technical parameters of 10000KN cold shear machine
Maximum shear force: 10000KN
Maximum size of shearing material: bar size Φ80,
Actual cutting times: 15 times/min
Shear opening: 210mm
Blade length: 1700mm
Upper cutting edge Angle: 1.5°
Tool installation: flat, profile cutter
Shear temperature: normal temperature
Width of roller table: 1600mm
Drive motor: 200KW; 1480r/min. AC
Pneumatic clutch, brake (imported from USA)
Overall dimensions of shearing machine: 3700x4900x3800 (mm)
Technical parameters of 13000KN cold shear machine
Shear steel: 60Si2CrVAT, GCr15, 42CrMo, 60CrMoBA, 51CrV4.
Shear specification: round steel Φ60, flat steel 53x100 (50CrV4); 40x130 (40Cr).
Shear force: 13000KN
Shear material: σsmax=1865MPa
Maximum size of shear material: bar size Φ80,
Actual cutting times: 15 times/min
Shear opening: 210mm
Blade length: 1700mm to 2000mm
Upper cutting edge Angle: 1.5°
Tool installation: flat, profile cutter
Shear temperature: normal temperature
Width of roller table: 1600mm-1900mm
Drive motor: 250KW; 1480r/min. AC
Pneumatic clutch, brake
Dimensions : Length x width x height (mm) 3700x4900x3800 (mm)
Structure description:
Cold Shear in rolling mill is mainly composed of main motor, belt pulley, flywheel, pneumatic clutch brake, reducer, crankshaft, cutter shear mechanism, frame body, press device, tool change device, hydraulic control system, lubrication system, electronic control system. The connecting rod that drives the shear mechanism to move up and down is installed in the eccentric position of the crankshaft. Both sides of the eccentric position are provided with copper bushings to support the crankshaft.
1) Belt driving device: the main motor transmits the motion to the flywheel through the triangle belt (the flywheel is connected with the passive belt wheel).
2) Pneumatic pressure clutch, brake and reducer: When the clutch is closed, the flywheel transmits the movement to the reducer; When the clutch is open, the braking function will be realized, the reducer will stop working, and the flywheel will idle.
3) Crankshaft and shear device: The crankshaft is mounted on the frame body, the crank tool holder is mounted on the crankshaft, and the tool holder moves up and down in the slide way of the frame body. When the clutch is closed, the reducer works, turning the crankshaft to rotate. The crank tool holder moves down quickly from the high position to achieve shearing (the blade is installed on the tool holder through the tool holder). When the shearing is complete, the clutch opens and the crankshaft tool moves upward as the crankshaft turns. When it moved to high place, the brake immediately works. At this point, the crankshaft stops running, waiting for the next loop to work.
4) The frame body and tool rest are portal frame structures of cast welding. The crankshaft is mounted in a copper alloy sleeve on the frame body. The tool rest is installed in the slide way of the frame body. The slide is made of copper alloy liner and mounted on the slide. The inclined slide board can adjust the gap between the tool rest and the slide. The normal gap is 0.2mm to 0.3mm.
5) The locking of the cutter seat adopts the disc spring locking and hydraulic opening. When replacing the cutterbed, push it from the hydraulic cylinder to the cutterbed replacement trolley or pull it from the cutterbed replacement trolley into the shear.
6) The material clamping device is composed of a material clamping head, a lever and a cylinder. Its function is to press the head of the bar tightly to prevent the beating during shearing.
7) Lubrication system: The copper slide plate and the copper bushing of the shearing mechanism are lubricated with grease, and the gear and bearing of the reducer are lubricated with thin oil.
8) Electrical control system: The electronic control system consists of a control cabinet and an operation table. The main motor is frequency sensitive rheostat. Each control point and process control is completed by a Siemens S7-200 programmable controller. Low voltage components are Schneider products.
